Star Micronics Thermal Printer

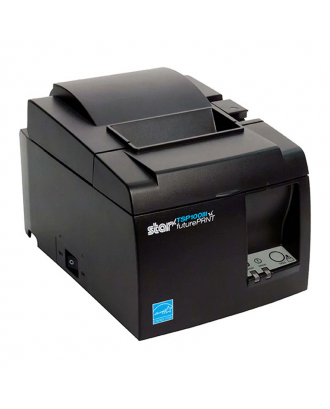

Star Micronics Thermal Printer TSP143IIILAN, Gray, AutoCutter, LAN (P/N:39464910)

0 reviews Write a review

Brand:Star
Product Code:TSP143IIILAN

$235.00

Qty

Description
Reviews (0)

Printer Method	Direct Line Thermal
Print Speed	43 RPM (Receipts Per Minute)
Printer Case Color	Ultra White or Gray
Models Available	Auto-Cutter with Emergency tear bar on the front guide
Print Resolution	203 dpi (8 dots per mm)
Font Size	12 X 24
Character Set	ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
International Code Pages	Star Mode=48
Bar Codes	Extended barcode functionality – 9 versions / PDF 417, Maxicode Option
Line Spacing	3 mm or 4 mm or programmable
Top Margin	11 mm default
Paper Specifications	Width: 80mm standard, 58mm with paper guide Thickness: 0.053 ~ 0.085 mm Roll Diameter: Up to 83 mm Easy – Load: “Drop-In & Print” Paper Out Sensor: Standard Paper Low Sensor: N/A Maximum Print Width: 80mm paper = 72mm, 58mm paper = 50.8mm
Auto Cutter	Guillotine (Partial Cut Only)
Cover Open Sensor	Yes
Logo Store Capacity	Unlimited
Multiple Copy Support	Supported through FuturePRNT Software
Journal Capability	Supported through FuturePRNT Software
Label Support	N/A
Power Supply	Internal with power cable supplied
Drivers Available	Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Class, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android
Digitally Signed (WHQL)	Yes
Swappable Interfaces	N/A
Connectivity	TSP100IIIWLAN (802.11b/g/n with 2.4GHz) TSP100IIIBi – Bluetooth iOS (Apple MFi-certified) TSP100IIILAN – Ethernet (10/100BaseT,UTP) with cable supplied TSP100IIIU – USB Virtual Serial Port to USB – Supported through FuturePRNT Software (TSP100, TSP100PUSB, TSP100LAN) Virtual Serial Port to LAN – Supported through FuturePRNT Software (TSP100LAN)
Emulation Modes	Star Mode SDKs (Raster only)
Peripheral Drive Circuit	2 circuits, (24V max. 1A), 1 compulsion input
Power Consumption	Average 1.6 Amp. Printing, 0.1 Amp. Standby
Operating Conditions	Temperature: 5oC to 45oC Humidity: 10% – 90% RH (without condensation)
Storage Conditions	Temperature: -20oC to 60oC Humidity: 10% – 90% RH
Dimensions	142 X 132 X 204 (w x h x d)mm
Weight	TSP143IIILAN – 1.73kg TSP143IIIBi – 1.53kg TSP143IIIW – 1.72kg TSP143IIIU – 1.72kg
Safety Standards	UL, C-UL, TuV, FCC, VCCI, EN55022, CE
Reliability MCBF	60 Million Lines Printhead: 100km Auto Cutter: 2 Million Cuts
Included Accessories	Wall Mount Bracket, 58mm Paper Guide, 3ft Interface Cable, 6ft Power Cable, Power Switch Cover, Easy Setup Guide, Installation CD with Drivers and FuturePRNT Receipt Design Software Auto Reverse Text Output Software (Power Cable not included with PUSB versions)
