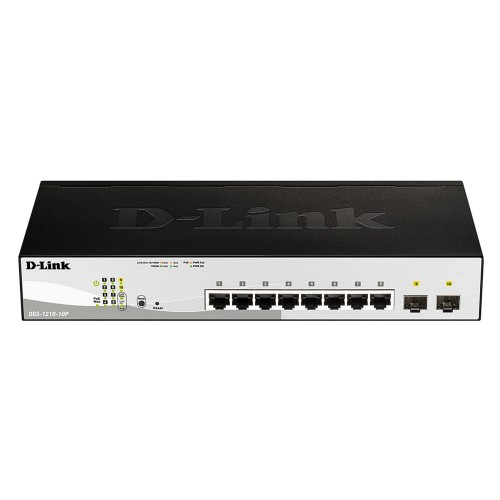

D link DGS-1210-10 10-PORT GIGABIT SMART MANAGED SWITCH

D link DGS-1210-10 10-PORT GIGABIT SMART MANAGED SWITCH

D link DGS-1210-10 10-PORT GIGABIT SMART MANAGED SWITCH

D link DGS-1210-10 10-PORT GIGABIT SMART MANAGED SWITCH

0 reviews Write a review

Brand:Cisco
Product Code:DGS-1210-10

$165.00

Qty

Description
Reviews (0)

10-Port Gigabit Smart Managed Switch

DGS-1210-10

Cost-efficient and ﬂexible solution for expanding any business network.

-8 x 10/100/1000BASE-T ports

-2 x Gigabit SFP ports

-Advanced L2 switching and security features

-L2+ Static Routing

-Optional “standard mode” or “surveillance mode” management user interface

Specifications

802.1X Yes

Port based 802.1X Authentication Yes

Authentication for Management Access Yes

RADIUS Yes

Trusted Host Yes

Max Access Control List (ACL) Entries Yes

MAC Access List Yes

IP Access List Yes

IPv6 Access List Yes

Port-based Bandwidth Control Yes

Class of Service (CoS) Yes

802.3x Flow Control Yes

Head-of-line (HOL) Blocking Prevention Yes

Store & Forwarding Forwading Yes

Comply with RoHS 6 Yes

Energy Efficiency Ethernet (EEE) Yes

Power Saving By Link Status Yes

Power Saving By Cable Length Yes

Power Saving By Port Shut-Off Yes

Power Saving By System Hibernation Yes

1000Base-T Interface 8

1000M SFP Interface 2

Auto MDI/MDIX Yes

10/100/1000BASE-T ports 8

SFP ports 2

CPU Speed 500MHz

DRAM Size DDR3 128MB

Flash Memory Size 32MB

Packet Buffer Size 4.1MBits

FAN Fanless

Jumbo Frame 10,000 Bytes

Loopback Detection (LBD) Yes

MAC Address Table Size 8K

IGMP Snooping Yes

Max IGMP Snooping Groups 256

IGMP Snooping Fast Leave Yes

MLD Snooping Yes

MLD Snooping Groups Yes

MLD Snooping Fast Leave Yes

IP Interface Yes

Max Number of IP Interface 4

ARP Yes

ARP Entries Yes

IPv6 Neighbor Discovery (ND) Yes

ND Entries 128

Default Route Yes

Static Route Yes

802.3ad Link Aggregation Yes

Link Aggregation Group Per Device 8

Max Port Per Link Aggregation Group 8

Web-based GUI Yes

Telnet Server Yes

SNMP Yes

TFTP Client Yes

SNMP Trap Yes

System Log Yes

RMONv1 Yes

LLDP Yes

LLDP-MED Yes

D-Link Discover Protocol (DDP) Yes (v0.26)

DHCP/BootP Client Yes

DHCP relay Yes

Dual Configurations Yes

Dual Images Yes

Debug Command Yes

Ping Yes

D-Link Network Assistant Yes (Chrome edition)

Smart Wizard Yes

Port Mirroring Yes

Cable Diagnostics Yes

Switch Capacity 20 Gbps

Max. Packet Forwarding Rate 14.88 Mpps

Power Input 100-240 VAC

Number of Queue Yes

Strict Priority Queue (SPQ) Yes

Weighted Round Robin (WRR) Yes

SSH Yes

SSL Yes (only support TLS 1.0)

Port Security Yes

Broadcast/Multicast/Unicast Storm Control Yes

Traffic Segmentation Yes

Smart IP-MAC-Port Binding (Smart IMPB) Yes

D-Link Safeguard Engine Yes

DHCP Server Screening Yes

ARP Spoofing Prevention Yes

DoS Attack Prevention Yes

802.1D Spanning Tree (STP) Yes

802.1w Rapid Spanning Tree (RSTP) Yes

802.1s Multiple Spanning Tree (MSTP) Yes

Root Restriction Yes

Maximum Heat Dissipation 21.53 BTU/hr (100V) <br>21.59 BTU/hr (240V)

Acoustic 0 dB

Dimension 280mm x 126 mm x 44mm

Maximum Power Consumption 6.31 W/100 V<br> 6.33 W/240 V

MTBF 1,380,058 hours

Operating Altitude 1500 meters

Operation Humidity 0% - 95% RH

Operation Temperature -5 - 50°C

Standby Power Consumption 2.03 W/100V / 2.07 W/240V

Storage Humidity 0% ~ 95% RH

Storage Temperature -20-70°C

Weight 0.98 kg

Simple Network Time Protocol (SNTP) Yes

802.1Q VLAN Yes

VLAN Groups Yes

Port-based VLAN Yes

Voice VLAN Yes

Auto Surveillance VLAN Yes

Asymmetric VLAN Yes
